Hi, welcome to use Simatoper WiFi smart switch If you have any questions, please contact the service QQ:67002902

1. Download “Smart Life” APP

Scan the QR code for installation. Or Search free App“Smart Life” from App Store for iOS version or Google play store for Android version.

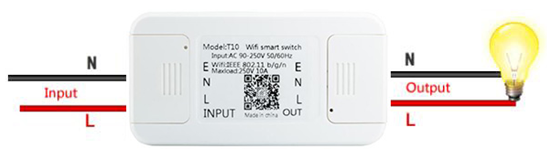

2. Follow below wiring instruction to connect the device.

input           output

N ————————N

L—————————L

E—————————E

Parameter：

Input voltage：AC 90V~250V

Maximum current：10A

WiFi standard：Wi-Fi 2.4GHz  802.1.1b/g/n

Security type：WEP/WPA-PSK/WPA2-PSK

Operating Environment：-20℃~70℃,≤80%RH

Shell Material：PC

Interface：Universal interface

3. Add device to your APP

a. Power up the device after you complete the installation .Now the red indicator light is flashing quickly to enter connection mode directly(Easy mode).

b. Insert the side hole with a needle to hold the reset button for 5~7 seconds until the red indicator light is flashing slowly, now the device enters hot spot configuration mode(AP mode).

c. Click“+” to add device, e.g. light device or plug

d. Search a WiFi router and type in password and click “Confirm”. Once the configuration is completed, the indicator light will stop flashing.
